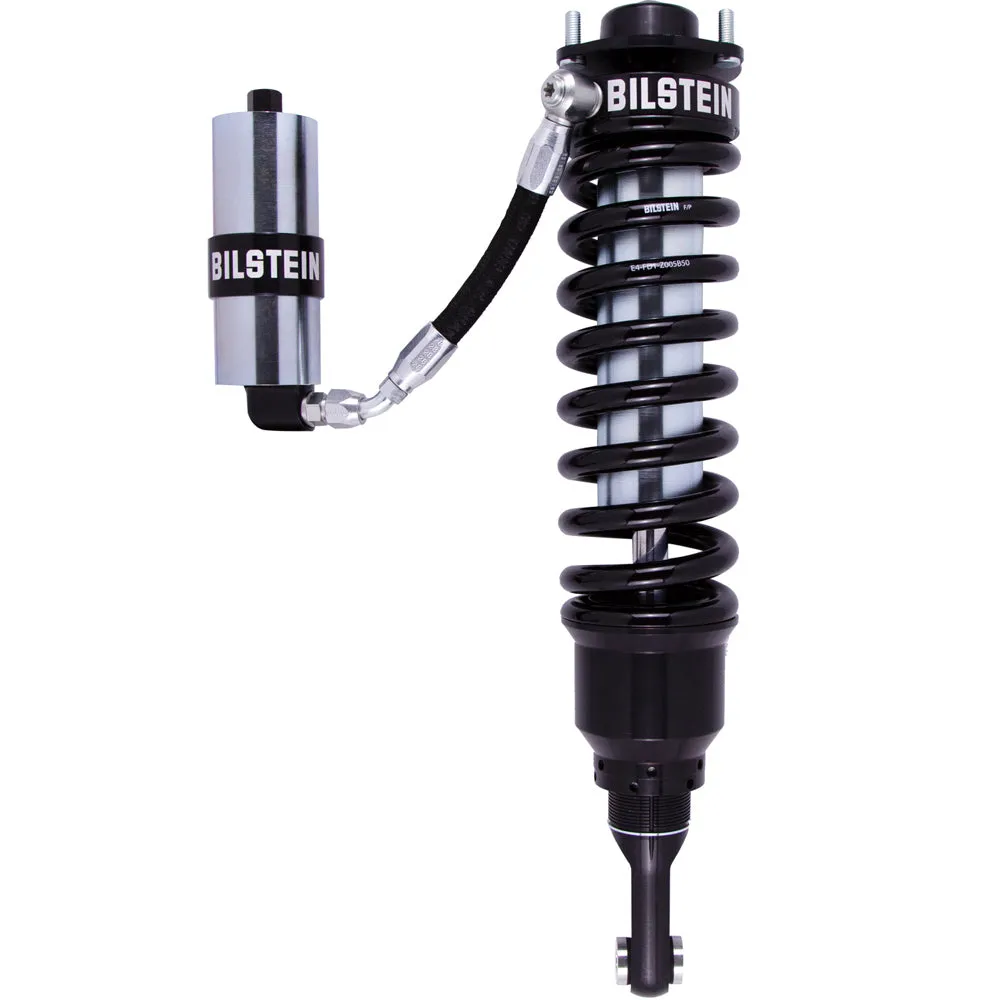

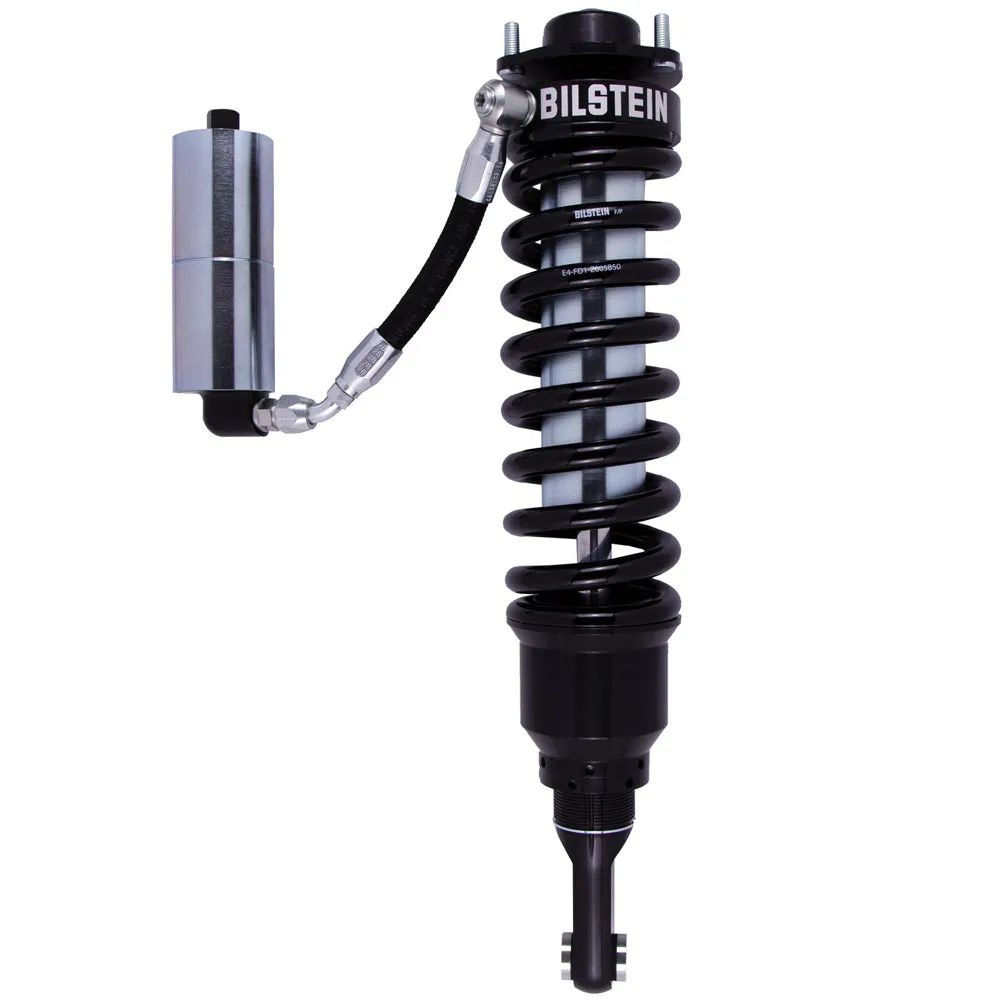

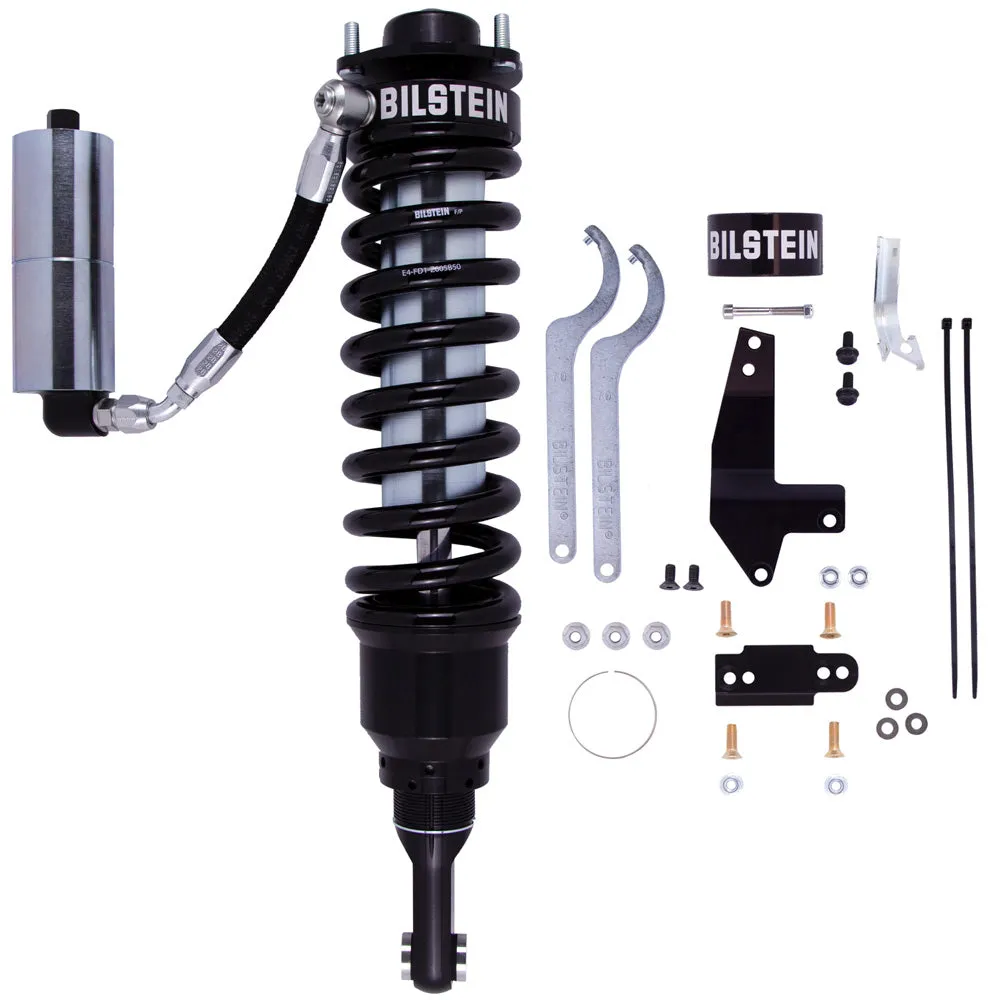

Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving.

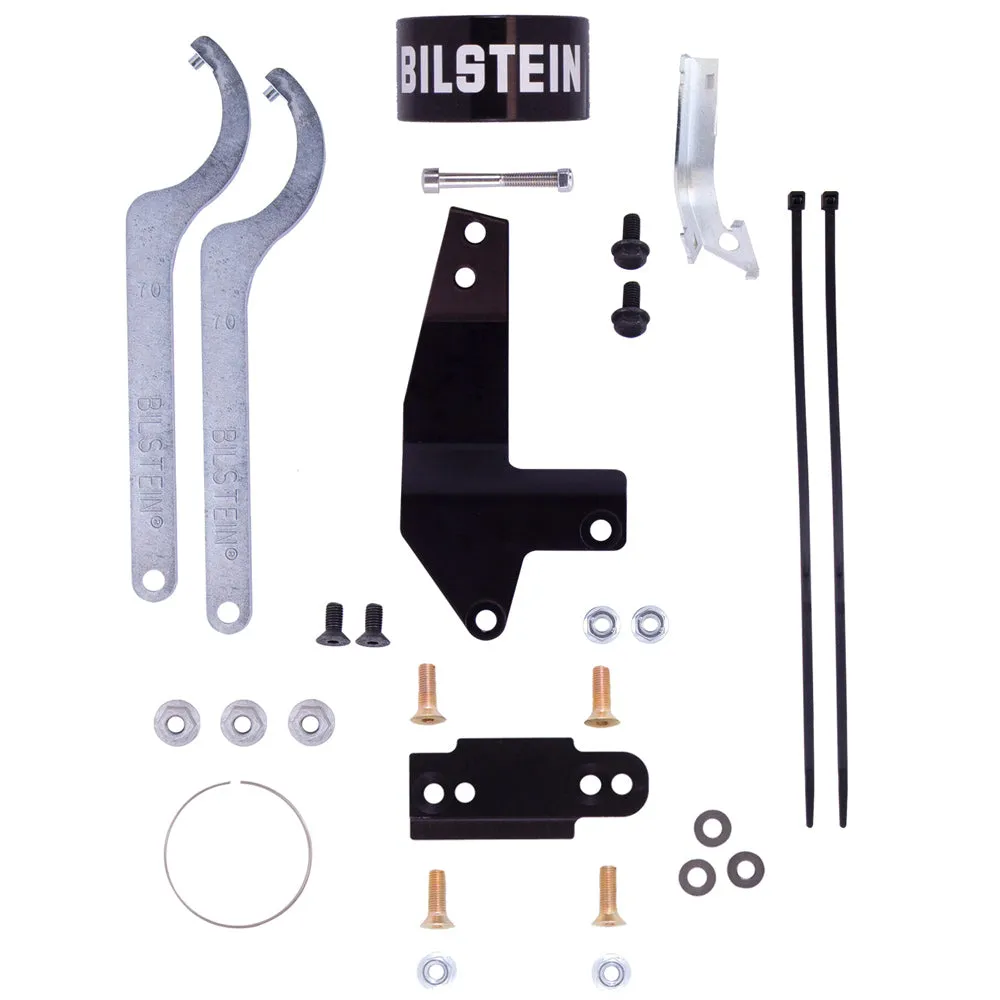

The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount.

BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

Specifications:

• Collapsed length (in) - 17.99
• Extended length (in) - 22.80
• Collapsed length (mm) - 456.9
• Extended length (mm) - 579.1
• Finish dampers: Zinc plated/springs - Black.
• Reservoir - Yes.
• Body design - Smooth body (coilover).
• Body diameter - 60mm.
• Adjustable damping - Non-adjustable.
• Optional heavy load springs - 53-291387

Notes:

• Front lift height - 1.5"-3".
• Without kinetic dynamic suspension system (KDSS).
